SD Card 4 Channel Mobile HD DVR System Compression H264 With 3G GPS

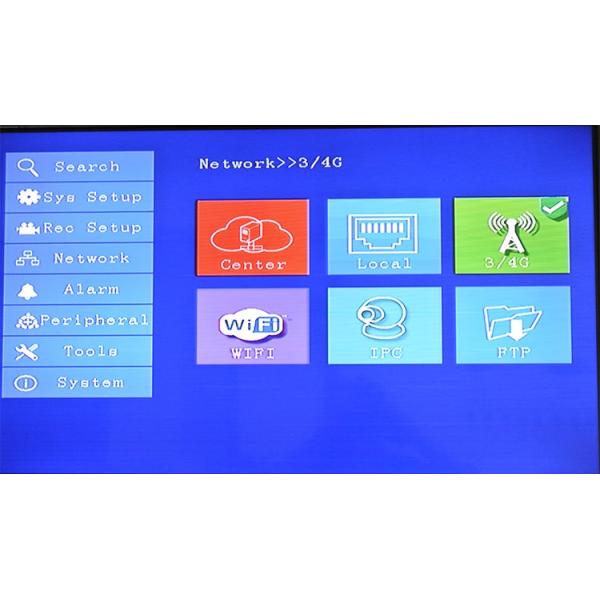

Smart GUI Interface, Easily Setting
Main Features:
H.264 Video Compression,Support 4CH 720P AHD Camera input;
Exclusive pre-allocated file system, solve the file fragmentation / SD lost / file garbled etc issue,protect data file;
10-36V Wide Voltage, Lower power consumption;
SD Card Storage ( Dual SD Card, each max 128GB ),
Support GPS/BD/G-sensor module
High vibration Aviation plug
Product Feature
◆ HIS Solution,H.264 Compression, Dual Stream,4CH Video and 4CH Audio input;720P AHD Camera & Normal Analog Camera input compatibility;
◆ High quality real time recording, 720P/CIF/HD1/D1 Optional, quality adjustable;
◆ Professional Car Power Design,10-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application;
◆ Support 12VDC/2.5Amp output voltage,power supply for Camera/Screen etc;
◆ Dual SD Card Support, each max 128GB,,protect DVR from shock & Dust damage;
◆ Watchdog abnormal restart function,protect SD Card and Record;
◆ Exclusive File System protect data completeness,prevent SD Card fragment;
◆ ACC Delay off,can set 24 hours;
◆ Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;
◆ Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
◆ Support GPS/BD G-sensor Optional;
◆ 3CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
◆ 1CH Alarm Output
| Item | Parameter |
| OS | Linux |
| Language | Chinese/English/Customized |
| Video Compression | H.264 |
| OSD | Overlays information such as date time and vehicle ID |
| GUI | Graphical User Interface | Setup system parameters with the remote control. |
| Video Record System | Video Input | 4CH 720P AHD input,aviation connector, 1.0Vp-p, 75Ω |
| | Video Output | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen |
| | Preview | Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview |
| | Resolution | 720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 |
| | Video Quality | 1-4 levels, 1 is the highest level. |
| | Video Standard | PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
| | Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
| Audio | Audio Input | 4CH ,Aviation Plug |
| | Audio Output | 1CH,Aviation Plug |
| | Compression | G.726 compression, 8KB/s speed |
| Alarm Input | 3Ch Alarm Input, kinds of alarm linkage support |
| Alarm Output | 1CH Alarm Output |
| Position | Support Built GPS/BD Module |
| G-Sensor | Support G-sensor |
